Belt Driven Actuators
Linear Actuator Systems

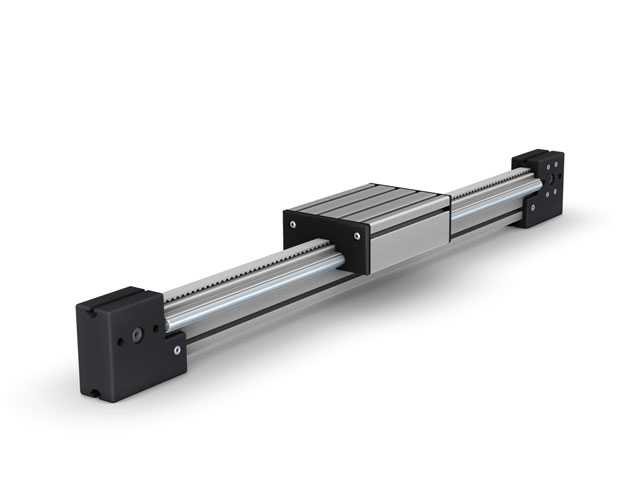

When high speeds and long travel distances are required, Paletti toothed belt driven linear slide actuator systems are ideally suited for your material handling and positioning tasks. Toothed belt driven linear systems are easy to incorporate into single or multi axis applications and offer long service life with minimal noise and maintenance.
Item # |
Actuator Type |
Max Static Axial Load (Z-direction) |
Max Static Radial Load (Y-direction) |
Max Speed |
Max Acceleration |
Minimum Track Length |
Max Track Length |
|---|---|---|---|---|---|---|---|
| BTRU150 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 156 mm | Max Track Length N/A 18000 mm |
| BTRU250 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 296 mm | Max Track Length N/A 18000 mm |
| BTRU350 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 296 mm | Max Track Length N/A 18000 mm |
| BTRU450 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 296 mm | Max Track Length N/A 18000 mm |
| BTRU650 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 3700 N | Max Static Radial Load (Y-direction) N/A 7900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 304 mm | Max Track Length N/A 18000 mm |
| BTRU800 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 3700 N | Max Static Radial Load (Y-direction) N/A 7900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 344 mm | Max Track Length N/A 18000 mm |
| BTRR350 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 296 mm | Max Track Length N/A 18000 mm |
| BTRR450 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 296 mm | Max Track Length N/A 18000 mm |
| BTRR800 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 3700 N | Max Static Radial Load (Y-direction) N/A 7900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 344 mm | Max Track Length N/A 18000 mm |
| BTSU10 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 110 N | Max Static Radial Load (Y-direction) N/A 56 N | Max Speed N/A 2 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 75 mm | Max Track Length N/A 18000 mm |
| BTSU1000 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 11050 N | Max Static Radial Load (Y-direction) N/A 5700 N | Max Speed N/A 5 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 240 mm | Max Track Length N/A 18000 mm |
| BTRO150 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 660 mm | Max Track Length N/A 18000 mm |
| BTRO250 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 660 mm | Max Track Length N/A 18000 mm |
| BTRO350 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 660 mm | Max Track Length N/A 18000 mm |
| BTRO650 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 2000 N | Max Static Radial Load (Y-direction) N/A 3900 N | Max Speed N/A 8 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 660 mm | Max Track Length N/A 18000 mm |
| CTRU10 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 160 N | Max Static Radial Load (Y-direction) N/A 0 N | Max Speed N/A 2 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 156 mm | Max Track Length N/A 6000 mm |
| CTRU25 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 200 N | Max Static Radial Load (Y-direction) N/A 0 N | Max Speed N/A 2 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 280 mm | Max Track Length N/A 6000 mm |
| CTRU50 |
Actuator Type
N/A Belt Driven |
Max Static Axial Load (Z-direction) N/A 400 N | Max Static Radial Load (Y-direction) N/A 0 N | Max Speed N/A 4 m/s | Max Acceleration N/A 19.62 m/s² | Minimum Track Length N/A 140 mm | Max Track Length N/A 6000 mm |
