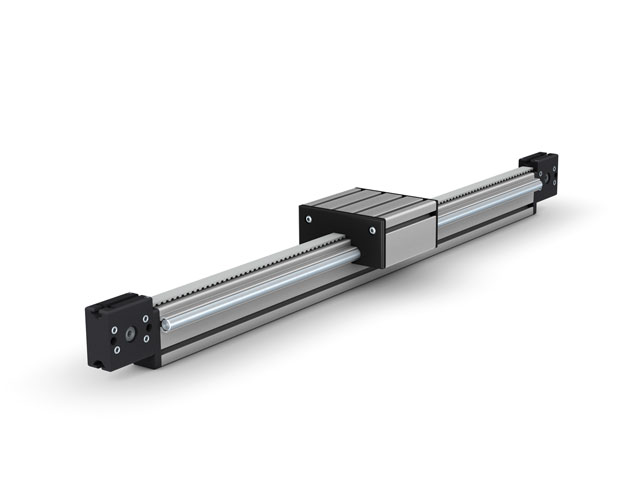

A versatile belt-driven linear actuator designed for performance and durability.
- Profile: 16-40x80/40 track profile
- Guides: 16mm hardened steel guide shafts
- Carriage: 140mm long with wiper lubricators
- Belt: AT 10/22
- Pulleys: 40/40
Unit of Measure
Technical Specs
Actuator Type |
N/A
Belt Driven |
Max Static Axial Load (Z-direction) |
N/A 2000 N |
Max Static Radial Load (Y-direction) |
N/A 3900 N |
Max Static Moment Load (Mx-Roll) |
N/A 60 N·m |
Max Static Moment Load (My-Pitch) |
N/A 80 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 155 N·m |
Max Speed |
N/A 8 m/s |
Max Acceleration |
N/A 19.62 m/s² |
Max Pulley Torque |
N/A 20 N·m |
Pulley Pitch Circle Diameter |
N/A 47.75 mm |
Belt Tensile Strength |
N/A 3200 N |
Carriage Weight |
N/A 3.33 kg |
Belt Weight |
N/A 250 g/m |
Minimum Track Length |
N/A 156 mm |
Max Track Length |
N/A 18000 mm |
