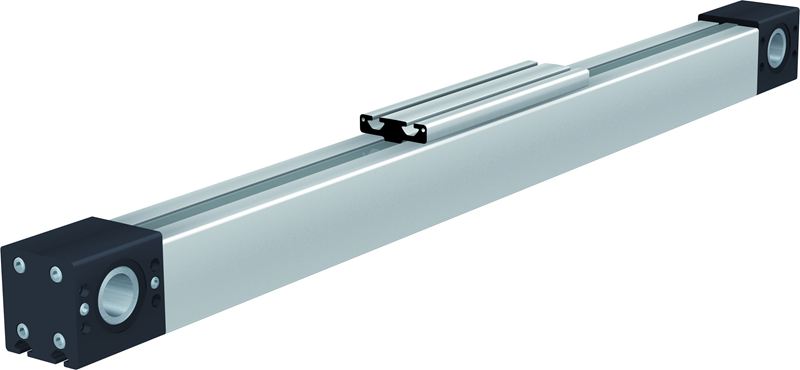

A versatile belt-driven linear actuator designed for performance and durability.
- Profile: 80x100 c-track profile
- Carriage: 140mm long
- Belt: AT 10/22
- Pulleys: C 80/100
Unit of Measure
Technical Specs
Actuator Type |
N/A
Belt Driven |
Max Static Axial Load (Z-direction) |
N/A 400 N |
Max Static Radial Load (Y-direction) |
N/A 0 N |
Max Static Moment Load (Mx-Roll) |
N/A 0 N·m |
Max Static Moment Load (My-Pitch) |
N/A 15 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 0 N·m |
Max Speed |
N/A 4 m/s |
Max Acceleration |
N/A 19.62 m/s² |
Max Pulley Torque |
N/A 70 N·m |
Pulley Pitch Circle Diameter |
N/A 60.48 mm |
Belt Tensile Strength |
N/A 3200 N |
Carriage Weight |
N/A 1.5 kg |
Belt Weight |
N/A 250 g/m |
Minimum Track Length |
N/A 140 mm |
Max Track Length |
N/A 6000 mm |
