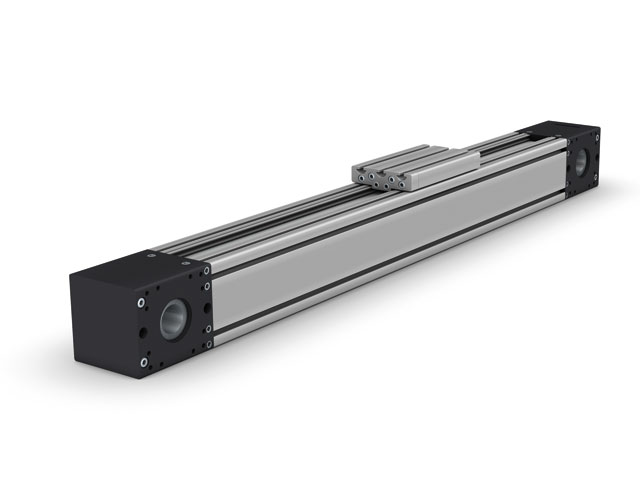

A versatile belt-driven linear actuator designed for performance and durability.
- Profile: 120x120 track profile
- Guides: Hardened steel guide rail
- Carriage: 240mm long (supported by two 25mm recirculating ball carriages)
- Belt: AT 10/50
- Pulleys: 120/120
Unit of Measure
Technical Specs
Actuator Type |
N/A
Belt Driven |
Max Static Axial Load (Z-direction) |
N/A 11050 N |
Max Static Radial Load (Y-direction) |
N/A 5700 N |
Max Static Moment Load (Mx-Roll) |
N/A 450 N·m |
Max Static Moment Load (My-Pitch) |
N/A 1200 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 1000 N·m |
Max Speed |
N/A 5 m/s |
Max Acceleration |
N/A 19.62 m/s² |
Max Pulley Torque |
N/A 120 N·m |
Pulley Pitch Circle Diameter |
N/A 101.86 mm |
Belt Tensile Strength |
N/A 8000 N |
Carriage Weight |
N/A 3.75 kg |
Belt Weight |
N/A 308 g/m |
Minimum Track Length |
N/A 240 mm |
Max Track Length |
N/A 18000 mm |
