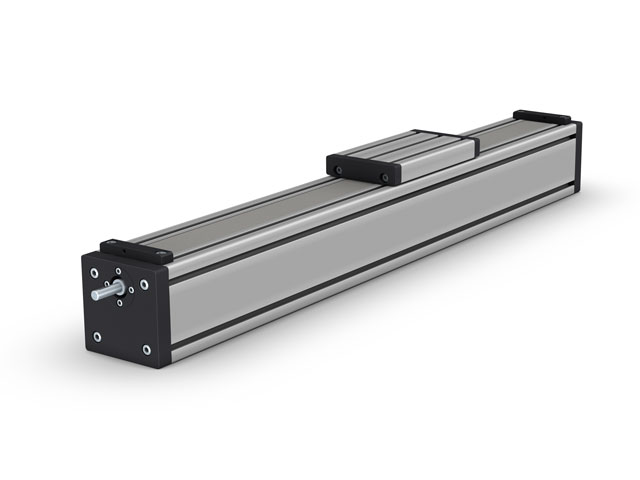

A precise ball screw driven linear actuator designed for accuracy and load capacity.
- Profile: 120x120 track profile
- Guides: Hardened steel guide rail
- Carriage: 240mm long (supported by two 25mm recirculating ball carriages)
- Screw Diameter: 20mm
- Screw Pitch: 20mm
Unit of Measure
Technical Specs
Actuator Type |
N/A
Screw Driven |
Max Static Axial Load (Z-direction) |
N/A 11050 N |
Max Static Radial Load (Y-direction) |
N/A 5700 N |
Max Static Moment Load (Mx-Roll) |
N/A 450 N·m |
Max Static Moment Load (My-Pitch) |
N/A 1200 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 1000 N·m |
Carriage Weight |
N/A 3.5 kg |
Minimum Track Length |
N/A 240 mm |
Max Track Length |
N/A 3300 mm |
Screw Type |
N/A Ball |
Screw Pitch |
N/A 20 mm |
Screw Diameter |
N/A 20 mm |
Max Stoke Length |
N/A 3 m |
Max Speed at 1m Travel |
N/A 0.585 m/s |
