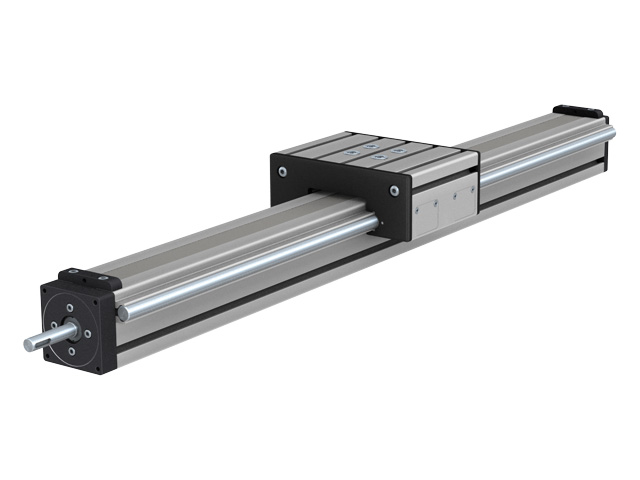

A precise ball screw driven linear actuator designed for accuracy and load capacity.
- Profile: 16-80x80 open profile
- Guides: 16mm hardened steel guide shafts
- Carriage: 140mm long with wiper lubricators
- Screw Diameter: 20mm
- Screw Pitch: 5mm
Unit of Measure
Technical Specs
Actuator Type |
N/A
Screw Driven |
Max Static Axial Load (Z-direction) |
N/A 2000 N |
Max Static Radial Load (Y-direction) |
N/A 3900 N |
Max Static Moment Load (Mx-Roll) |
N/A 100 N·m |
Max Static Moment Load (My-Pitch) |
N/A 80 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 155 N·m |
Carriage Weight |
N/A 4.8 kg |
Minimum Track Length |
N/A 220 mm |
Max Track Length |
N/A 3300 mm |
Screw Type |
N/A Ball |
Screw Pitch |
N/A 5 mm |
Screw Diameter |
N/A 20 mm |
Max Stoke Length |
N/A 3 m |
Max Speed at 1m Travel |
N/A 0.175 m/s |
