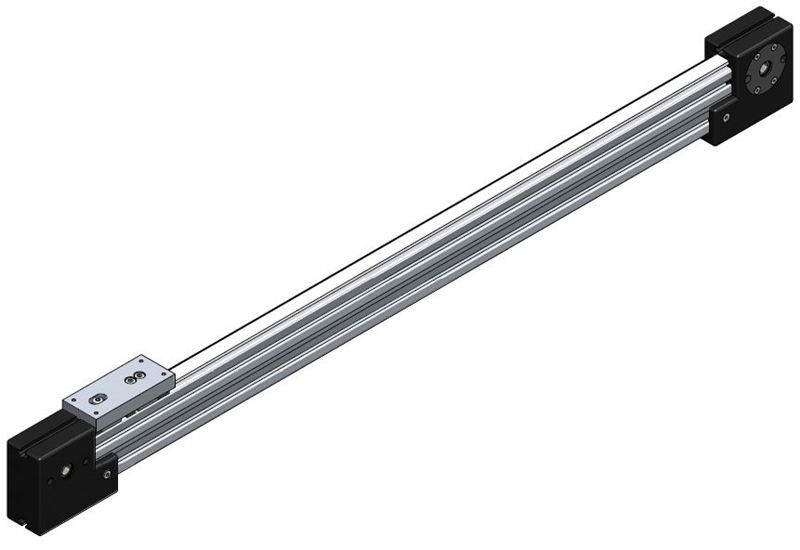

A simple non-guided belt drive actuator for linear motion applications.
- Profile: 40x80 profile
- Carriage: Carriage tensioning plate
- Belt: AT 10/20
- Pulleys: 40/40 HD
Unit of Measure
Technical Specs
Actuator Type |
N/A
Pusher Drive |
Max Static Axial Load (Z-direction) |
N/A 0 N |
Max Static Radial Load (Y-direction) |
N/A 0 N |
Max Static Moment Load (Mx-Roll) |
N/A 0 N·m |
Max Static Moment Load (My-Pitch) |
N/A 0 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 0 N·m |
Max Speed |
N/A 3 m/s |
Max Acceleration |
N/A 16 m/s² |
Max Pulley Torque |
N/A 20 N·m |
Pulley Pitch Circle Diameter |
N/A 47.75 mm |
Belt Tensile Strength |
N/A 3000 N |
Belt Weight |
N/A 250 g/m |
Minimum Track Length |
N/A 140 mm |
Max Track Length |
N/A 18000 mm |
