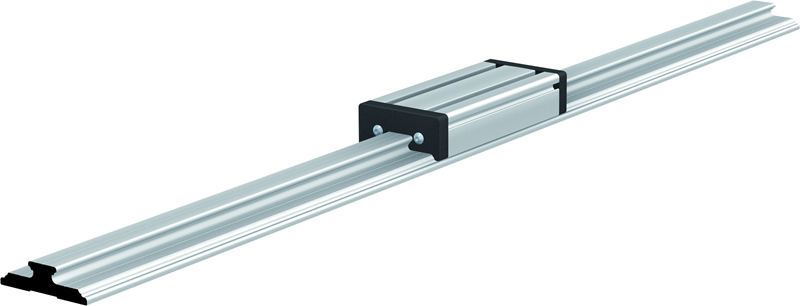

A robust linear guide assembly providing smooth and stable motion support.
- Profile: Guide rail profile
- Carriage: 168mm long
- End Caps: Includes end covers
Unit of Measure
Technical Specs
Actuator Type |
N/A
Linear Guide |
Max Static Axial Load (Z-direction) |
N/A 360 N |
Max Static Radial Load (Y-direction) |
N/A 360 N |
Max Static Moment Load (Mx-Roll) |
N/A 0 N·m |
Max Static Moment Load (My-Pitch) |
N/A 0 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 0 N·m |
Max Speed |
N/A 1 m/s |
Max Acceleration |
N/A 4.9 m/s² |
Carriage Weight |
N/A 0.8 kg |
Minimum Track Length |
N/A 168 mm |
Max Track Length |
N/A 6000 mm |
