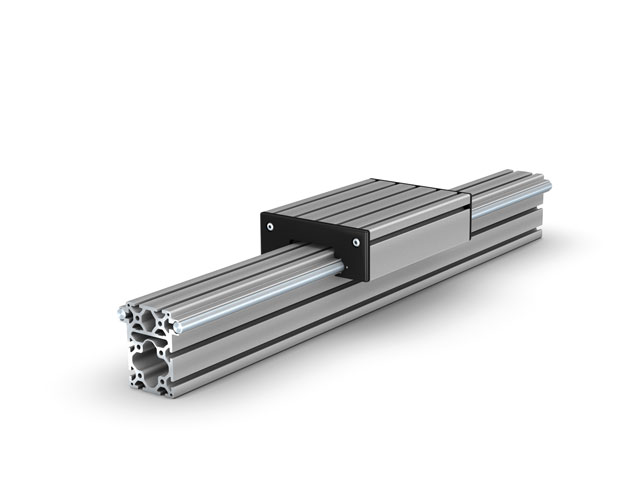

A robust linear guide assembly providing smooth and stable motion support.
- Profile: 16-80x120 track profile
- Guides: 16mm hardened steel guide shafts
- Carriage: 280mm long with wiper lubricators
- End Caps: Includes end plates
Unit of Measure
Technical Specs
Actuator Type |
N/A
Linear Guide |
Max Static Axial Load (Z-direction) |
N/A 2000 N |
Max Static Radial Load (Y-direction) |
N/A 3900 N |
Max Static Moment Load (Mx-Roll) |
N/A 100 N·m |
Max Static Moment Load (My-Pitch) |
N/A 220 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 425 N·m |
Max Speed |
N/A 8 m/s |
Max Acceleration |
N/A 19.62 m/s² |
Carriage Weight |
N/A 7.1 kg |
Minimum Track Length |
N/A 296 mm |
Max Track Length |
N/A 18000 mm |
