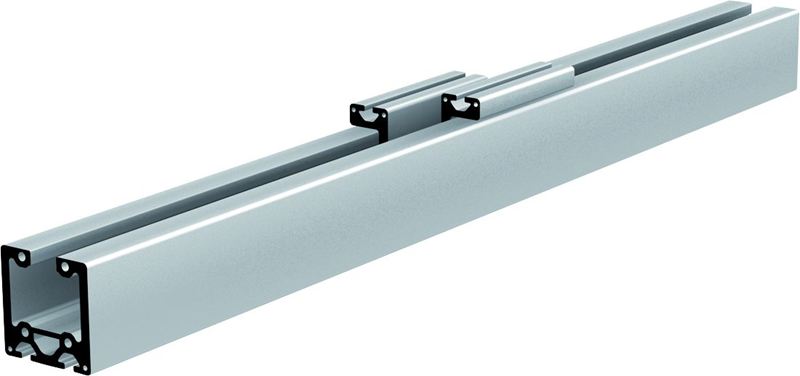

A robust linear guide assembly providing smooth and stable motion support.
- Profile: 80/100 c-track profile
- Carriage: Qty 2 x 140mm long
- End Caps: Includes end plates
Unit of Measure
Technical Specs
Actuator Type |
N/A
Linear Guide |
Max Static Axial Load (Z-direction) |
N/A 200 N |
Max Static Radial Load (Y-direction) |
N/A 0 N |
Max Static Moment Load (Mx-Roll) |
N/A 0 N·m |
Max Static Moment Load (My-Pitch) |
N/A 8 N·m |
Max Static Moment Load (Mz-Yaw) |
N/A 0 N·m |
Max Speed |
N/A 2 m/s |
Max Acceleration |
N/A 9.81 m/s² |
Carriage Weight |
N/A 1.1 kg |
Minimum Track Length |
N/A 140 mm |
Max Track Length |
N/A 6000 mm |
